Overview

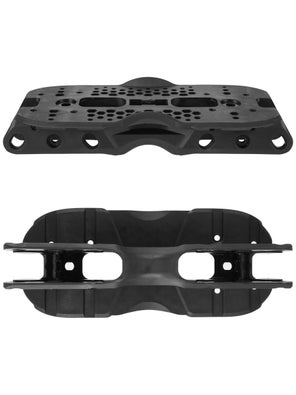

The Kizer Soulframes are a unibody design that combines the frame with the soulplate. This allows for a lower, lighter setup that is compatible with a wide range of boots with flat bottoms like USD Carbon & Carbon Free, Seba CJ, Gawds FM5 & Prado II, Iqon AG10 and Iqon AG 20 boots. A heel adapter, sold separately, is required to work with boots having a raised heel. This is said to be coming, but is not available at this time.
The Kizer Soulframes are the same as those used for the Kizer Suspension frame, so it is compatible with Kizer's aftermarket suspension kit if/when available. Here we will focus on how they are sold on their own. They mount using the UFS bolts and/or with extra holes built-in on the the soulplate bottom to allow room for bigger wheels (up to 72mm). The Superfluid material is fast and strong, made of a mixture of nylon and carbon fiber. It is more expensive that other frame material, but last longer so that you don't need to replace as often.
Included frame rocker spacers (bosses) rotated UP or DOWN dictate wheel size. The below information is from Kizer and not tested here at IW. Please contact Powerslide/Kizer directly should you have further compatibility questions.
Flat (no suspension):
- Bearing bosses rockered UP - Max 60 mm wheels
- Bearing bosses rockered DOWN - Max 65 mm wheels
Antirocker/Freestyle (no suspension):
- Bearing bosses rockered UP - Max 60 mm wheels
- Bearing bosses rockered DOWN - Max 65 mm wheels
Antirocker/Freestyle (no suspension with a recess in soulplates):
- Bearing bosses rockered UP – Max 65 mm wheels
- Bearing bosses rockered DOWN – Max 72 mm
Compatible With:
- Iqon AG10 & AG20
- Gawds FM5, Prado II, Team
- USD Carbon
- USD Carbon Free
Potential to fit all UFS boots although it is more than likely to only attach via the UFS holes. Modification may be needed to use the soul holes. Modifying the inside of h-block may also be needed (shaving) to fit the width of some UFS skates.
