Overview

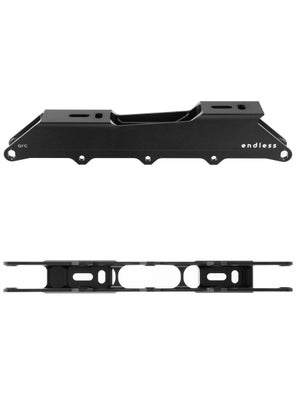

The Endless Arc 165 5-Wheel Frames are precision machined for 5-wheel wizard skating fun with multiple configuration options. They hold a max configuration of 84mm wheels on each end with 3x76mm wheels in the middle. If you size down a little bit to 80mm wheels on both ends, it allows the rocker-able axles to be used to their fullest potential. The extra pivot point (middle wheel) allows for an advanced wheel rocker and they are extremely stable, but still highly maneuverable. Endless recommends using wheels with the same profile for the best results.
The frames come with a set of (6) 8mm single-sided axles and (4) two-piece rocker-able axles that will work on the ends of each frame. The frames themselves are very durable and will feel precise in CNC-machined 6061-T6 Aluminum. They have longitudinal mounting slots so that you can get the perfect front-back frame alignment in 165 and 180mm mounting.
To center them onto FR, Seba, and Micro MT Plus boots Endless recommends that you push the frame forward so that the bolt sits toward the rear of the slot. With Rollerblade or Adapt boots, they recommend pushing the frame backward so that the bolt sits near the center of the slot. With skates that have 7-hole mounting capabilities like the FR1, 2, and 3 the longitudinal mounting slots will be even laterally adjustable.
Specifications
| Mount | 165mm, 180mm |
|---|---|
| Max Wheel Size | 84-76-76-76-84mm |
| Weight | 337g (No Spacers or Axles) |
| Type | Urban, Freestyle |
| Length | 12.44" or 316mm |
| Pivot Spacing | 77mm |
| Material | CNC Machined 6061-T6 Aluminum |
| Hardware included | (6) 8mm Single-Sided Axles (4) Arc Rocker 8mm Two-Piece Axles |
| Brake Compatibility | Not Recommended |
